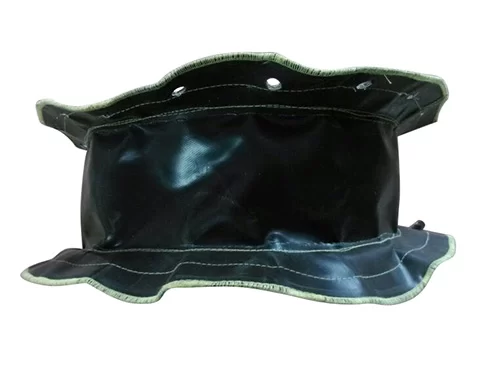

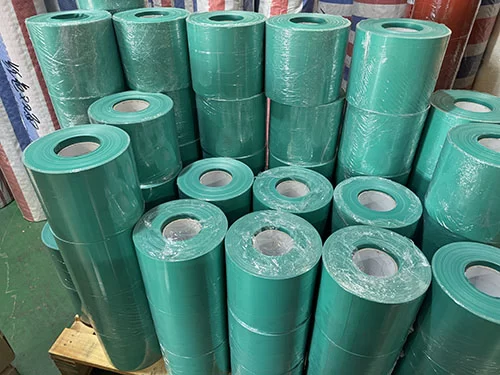

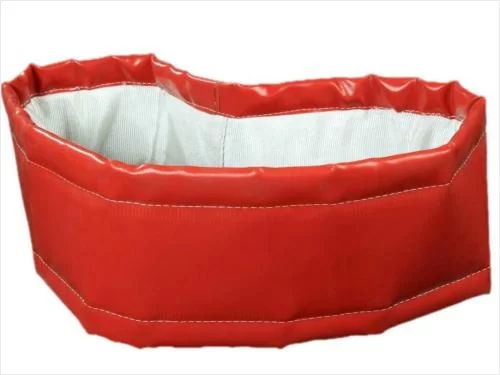

Fabric Connectors also known as flexible duct connectors or flexible connectors or flame retardant fabric connections or fabric expansion joints. are components used primarily in HVAC (Heating, Ventilation, and Air Conditioning) systems to connect ducts, fans, and equipment. They are often made from a combination of flexible materials, such as fire-resistant materials like silicone-coated fiberglass or neoprene-coated fabrics, and flexible canvas, providing flexibility, strength, and resistance to temperature changes or chemical exposure. To provide a flexible, airtight connection between two rigid structures.

Functions of Fabric Connectors

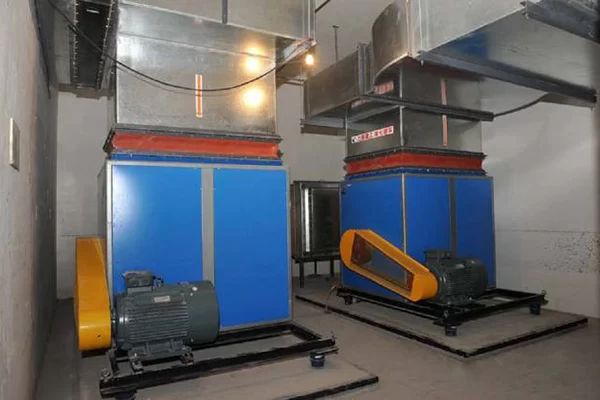

1. Absorbing Vibration and Noise: Fabric connectors isolate vibrations caused by equipment like fans, blowers, or air handlers, preventing them from transmitting through the ductwork. This helps reduce noise and protects the system from mechanical stress.
2. Compensating for Movement: In HVAC systems, there may be slight movements due to temperature changes, air pressure variations, or structural shifts. Fabric connectors allow some flexibility to accommodate this movement without putting stress on the duct system.
3. Preventing Leaks and Maintaining Airflow: Fabric connectors create a sealed, flexible joint between two components, maintaining airtightness while allowing movement and preventing air leaks that could reduce system efficiency.
4. Thermal and Pressure Tolerance: Fabric connectors can withstand high temperatures and pressure fluctuations, making them suitable for connecting systems where there may be thermal expansion or pressure variations.

Fabric connectors are essential components in HVAC and other systems where flexibility, noise reduction, and movement absorption are required, providing a durable and efficient solution for maintaining system integrity and performance.

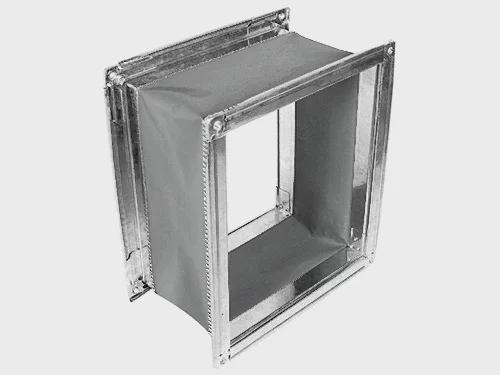

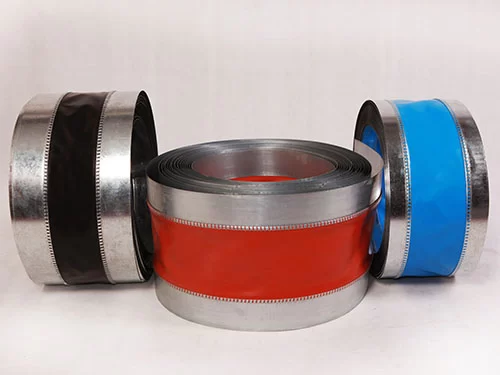

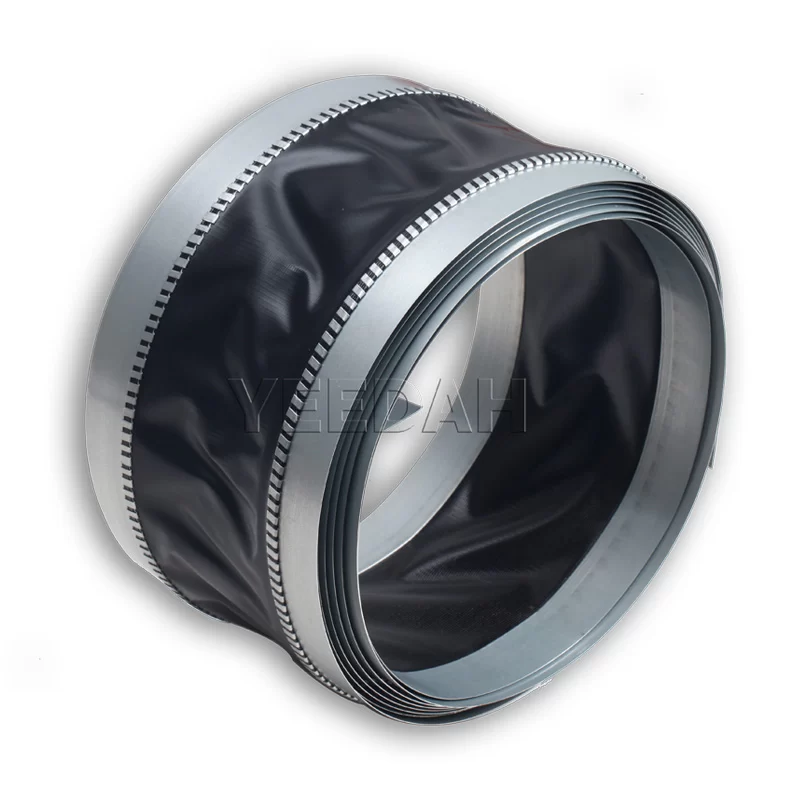

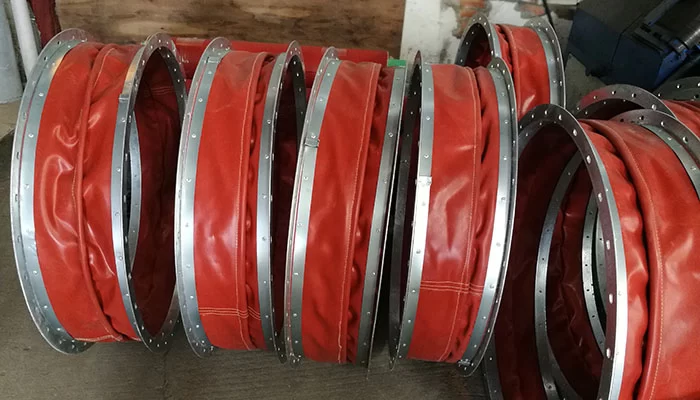

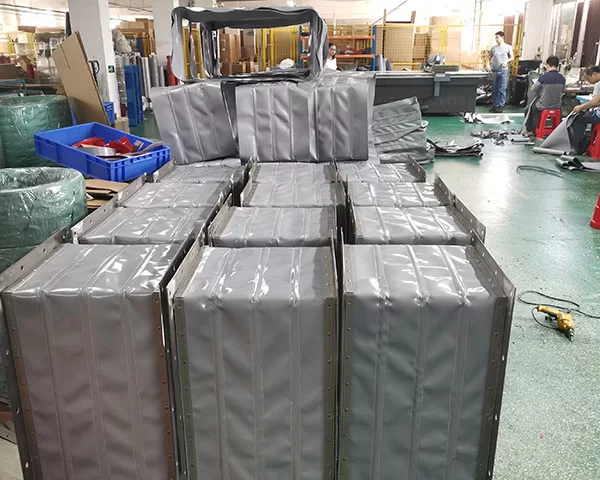

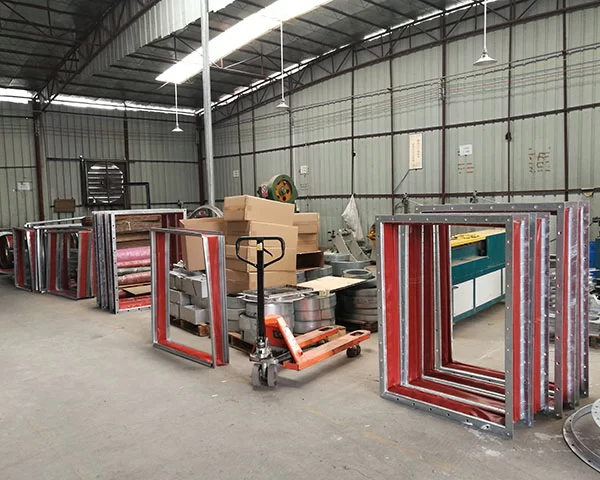

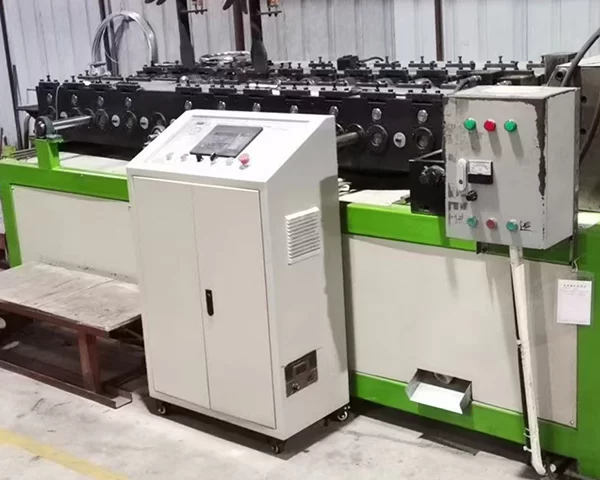

Flexible duct connector (flexible HVAC duct connector, TDF flexible connector) are specialized components used in HVAC (Heating, Ventilation, and Air Conditioning) systems to create a flexible, airtight connection between ductwork and equipment such as fans, blowers, or air handling units. These connectors are designed to absorb and isolate vibrations, noise, and thermal expansion in HVAC systems, ensuring the structural integrity and proper functioning of the system.

Flexible duct connectors are made of two key materials:

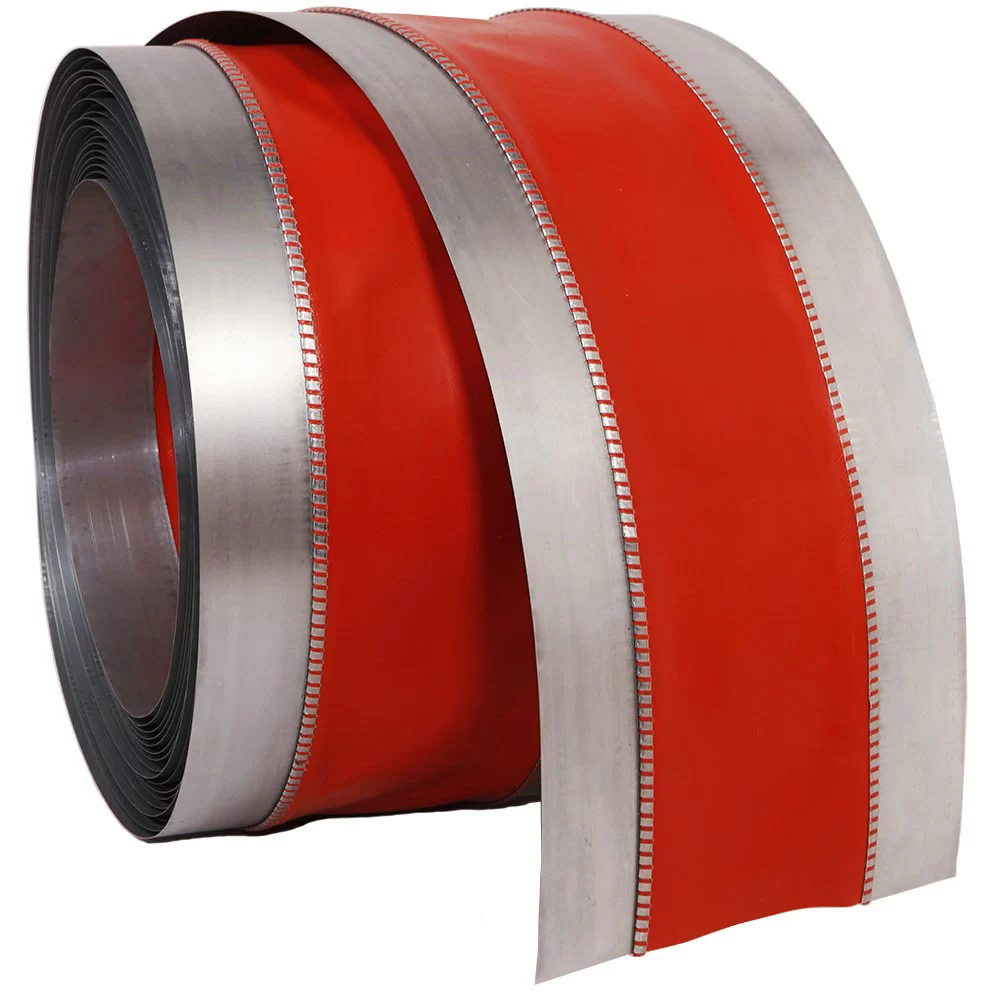

Fabric Layer: This is often a durable, heat-resistant fabric, such as silicone-coated fiberglass or neoprene coated fabric or canvas ducting cloth. The fabric provides the necessary flexibility while maintaining airtightness and resistance to environmental factors such as heat or chemicals.

Metal Strips or Flanges: These are usually made from galvanized steel or steel or aluminum, which are attached to the fabric layer and connect the flexible duct connector to the rigid duct or equipment.

Functions of Flexible Duct Connectors

1. Vibration Isolation: One of the primary functions of flexible duct connectors is to prevent vibrations generated by equipment like fans or blowers from being transmitted through the ductwork. By absorbing these vibrations, they help protect the duct system from mechanical stress and reduce noise levels.
2. Compensating for Movement: HVAC systems may experience slight movements due to temperature changes, pressure fluctuations, or building shifts. Flexible duct connectors allow for this movement without putting undue stress on the rigid ducting or the equipment. This flexibility ensures that the system remains sealed and functional even with slight misalignments or shifts.
3. Noise Reduction: Because they dampen the vibrations, flexible duct connectors help reduce the noise caused by HVAC systems. This is especially important in environments where quiet operation is needed, such as offices or residential buildings.
4. Air Tightness: Flexible duct connectors maintain airtight seals, preventing leaks in the system, which could otherwise cause a loss in efficiency or pressure. This ensures that the airflow remains consistent and the system operates efficiently.
5. Thermal Expansion and Contraction: HVAC systems are often exposed to temperature changes that cause expansion and contraction of materials. Flexible duct connectors can accommodate this thermal movement, preventing cracks or damage in the ductwork.

Flexible duct connectors play a critical role in HVAC systems by providing flexibility, reducing noise and vibrations, ensuring airtight connections, and absorbing thermal or structural movement. This enhances both the durability and performance of the entire system.

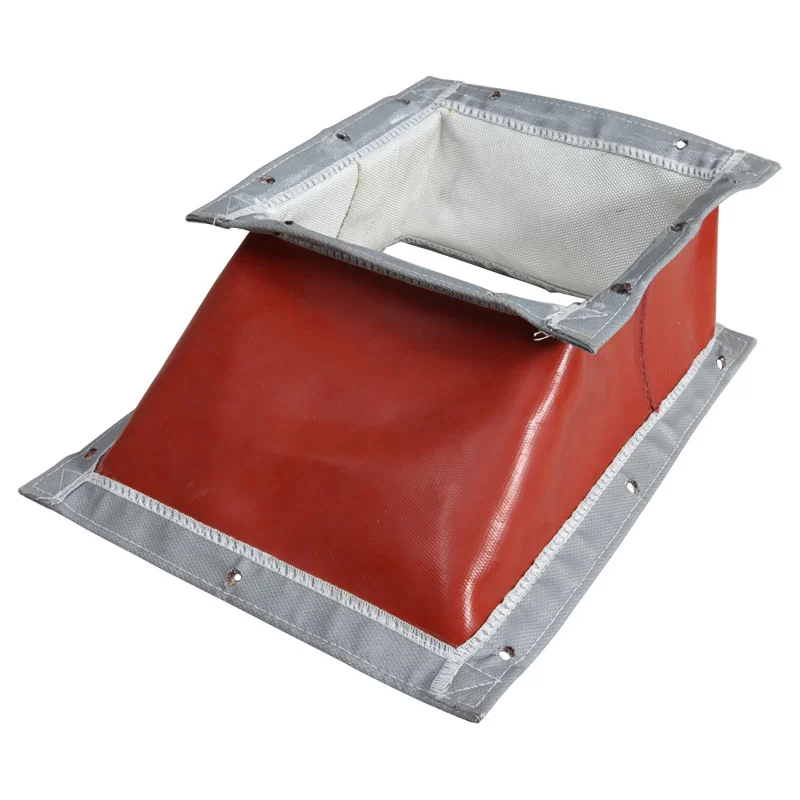

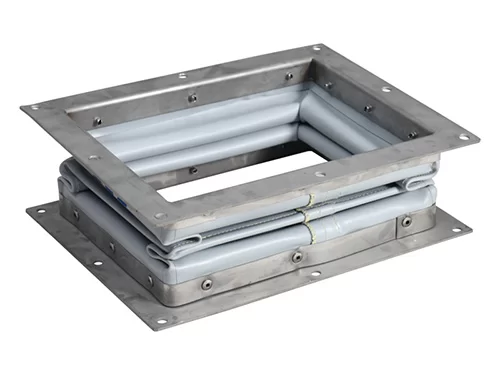

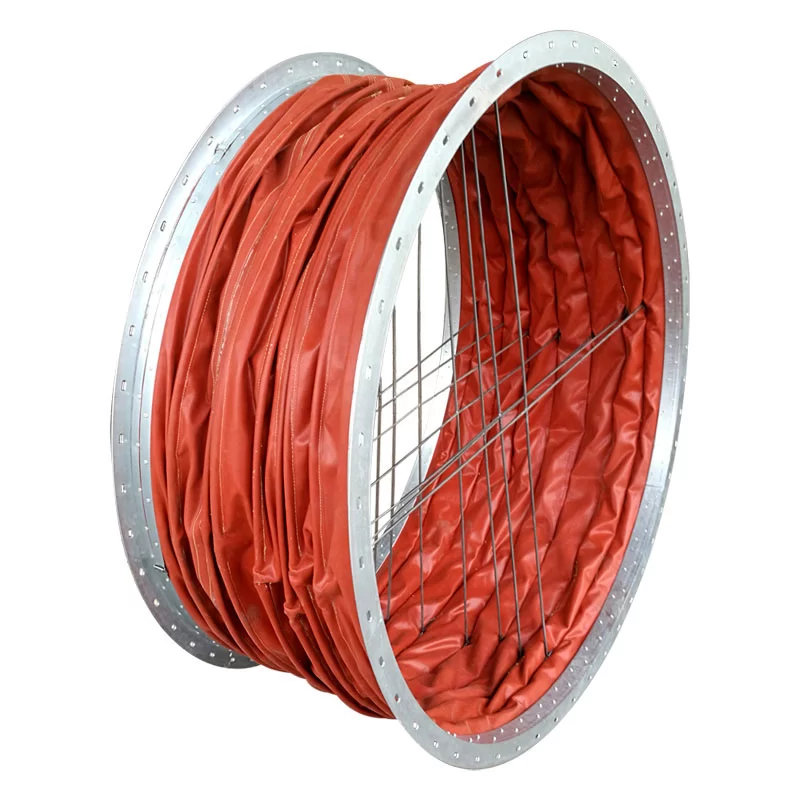

An expansion joint is a structural component designed to absorb movement and mechanical stress in systems such as pipelines, bridges, buildings, or HVAC systems. These joints are critical for preventing damage caused by thermal expansion, contraction, or vibrations.

Expansion joints are typically made of flexible materials that can endure various types of mechanical stress. Made of metal expansion joints (stainless steel or steel or other alloys ) and fabrics. Some joints use a combination of materials to meet the requirements of specific applications.

Functions

1. Absorbing Thermal Expansion and Contraction: As systems heat up or cool down, they expand and contract. Expansion joints prevent damage by allowing the structure or pipeline to move without creating excessive strain.
2. Vibration Isolation: In systems with moving parts, such as pumps or motors, expansion joints dampen vibrations, which helps to protect equipment and reduces noise.
3. Compensating for Misalignment: Expansion joints can also accommodate small misalignments in piping or duct systems, ensuring they remain connected even when exact alignment isn’t possible.
4. Relieving Stress: They help in reducing stress on pipes or structural components, which could otherwise lead to cracking or failure.

Expansion joints enhance the durability and flexibility of mechanical and structural systems by absorbing movement, reducing stress, and preventing damage caused by thermal changes, pressure, or vibration.

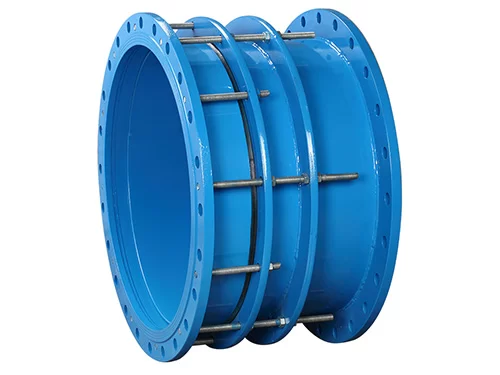

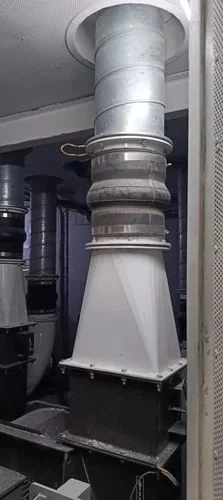

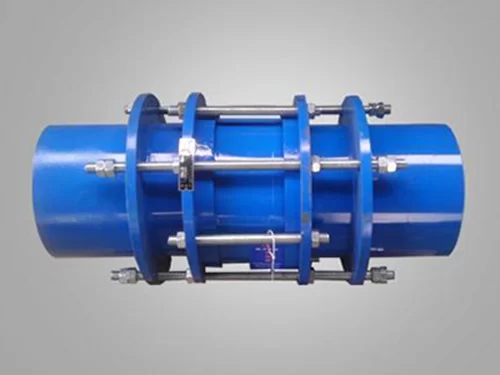

Metal connectors in the context of industrial systems, particularly HVAC (Heating, Ventilation, and Air Conditioning) or piping systems, are rigid or semi-rigid components used to join sections of ducts, pipes, or other structures. These connectors ensure structural stability, airtightness, and proper alignment between connected parts. Unlike fabric or flexible connectors, metal connectors are designed to provide a more durable and robust link, though they may offer limited flexibility depending on their design.

Metal connectors are typically made from gallvanized steel, stainless steel, aluminum and copper.

The choice of material depends on the specific application, such as corrosion resistance, temperature tolerance, or structural strength requirements.

Functions of Metal Connectors

1. Rigid Connections: Metal connectors provide a strong, rigid connection between two sections of ductwork, piping, or other components. This is critical in systems where minimal movement is expected and structural integrity is a priority.
2. Airtight and Leakproof Seals: When properly installed, metal connectors create airtight seals, preventing leaks of air, fluids, or gases. This is essential in HVAC systems to maintain air pressure and in piping systems to prevent fluid or gas leakage.
3. Load-bearing Capability: Metal connectors are capable of bearing higher loads compared to flexible connectors. This makes them suitable for supporting heavy or large sections of ducts or pipes without risk of sagging or detachment.
4. Durability in Harsh Conditions: Metal connectors are highly durable and can withstand extreme temperatures, pressure, and exposure to corrosive environments. For example, stainless steel connectors are commonly used in high-temperature or corrosive applications.
5. Structural Alignment: Metal connectors ensure proper alignment between connected components, helping maintain system stability and precision, particularly in complex installations like HVAC systems, industrial piping, or structural frameworks.
6. Expansion Joints in Some Applications: Certain metal connectors are designed with flexibility in mind, such as metal expansion joints, which allow for a small degree of movement due to thermal expansion or contraction in piping or duct systems. These specialized metal connectors combine the rigidity of metal with the necessary flexibility to prevent damage from thermal changes.

Applications

• HVAC systems: Connecting sections of metal ductwork or attaching ducts to air handling units or diffusers.
• Piping systems: Used to join metal pipes, especially in high-pressure or high-temperature applications, such as industrial plants or refineries.
• Structural connections: In construction, metal connectors are used to join beams, columns, or other load-bearing components, ensuring stability and strength.

Metal connectors are essential components that provide strong, durable, and airtight connections in various systems, from HVAC and piping to structural frameworks. They are known for their ability to withstand harsh conditions, offer structural alignment, and support heavy loads.

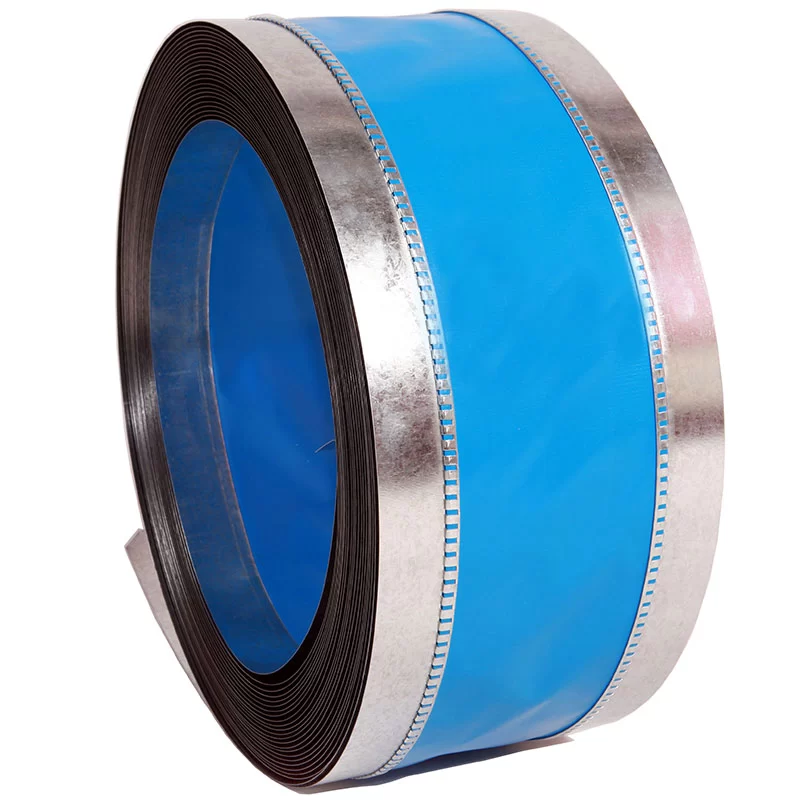

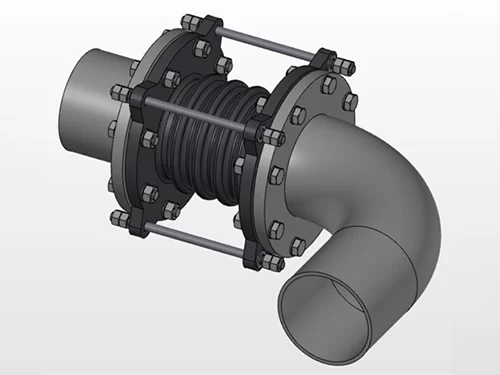

Rubber and Plastic Connectors offer good resistance to chemicals and moisture. The connectors are flexible components used in a variety of industrial systems, including HVAC, piping, automotive, and plumbing, to connect sections of equipment, ducts, or pipes. These connectors are valued for their flexibility, elasticity, and ability to absorb movement, making them particularly useful in applications where vibration, thermal expansion, and misalignment are concerns.

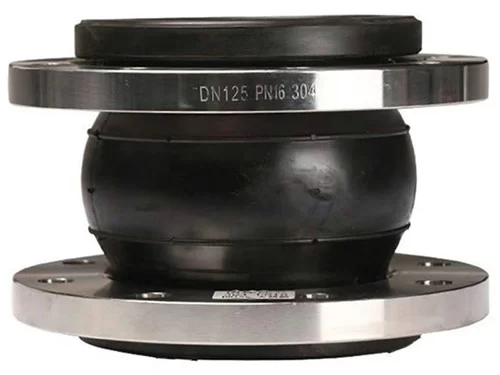

Rubber Connectors are made from different types of rubber, including natural rubber, neoprene rubber, EPDM(Ethylene Propylene Diene Monomer). Plastic connectors are typically made from various polymers such as PVC (Polyvinyl Chloride), Polypropylene Nylon or Polyethylene.

Functions of Rubber and Plastic Connectors

1. Flexibility and Movement Absorption: Rubber and plastic connectors allow for the absorption of movements caused by thermal expansion, vibrations, or structural shifts. This flexibility is critical in preventing damage to more rigid components in systems like pipes or ducts. For instance, in HVAC systems, these connectors help manage the movement of air ducts or plumbing pipes when subjected to temperature changes or vibrations.

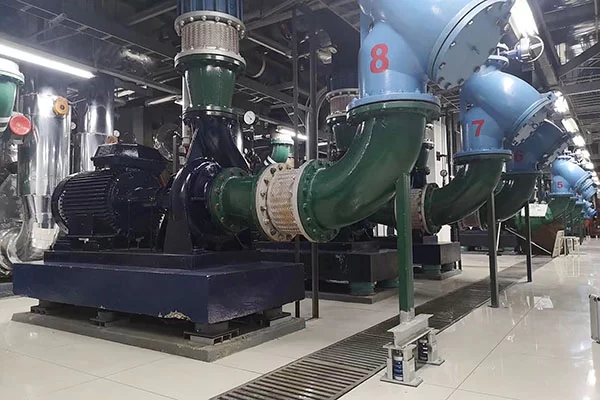

2. Vibration Dampening: A key function of rubber and plastic connectors is to dampen vibrations from equipment such as motors, pumps, or fans. This helps reduce mechanical stress on connected components and prevents the transmission of vibrations through the system, which can cause noise and structural fatigue.
3. Sealing and Leak Prevention: Rubber and plastic connectors create airtight and watertight seals, preventing leaks in systems that carry air, water, or other fluids. In plumbing or piping systems, these connectors ensure the integrity of the system and prevent loss of pressure or fluid leaks.
4. Thermal and Chemical Resistance: Many rubber and plastic materials are resistant to a wide range of temperatures and chemicals. For example, EPDM rubber is resistant to high temperatures, while neoprene is used in environments exposed to oils and chemicals. Similarly, plastic connectors made from materials like PVC and polypropylene are resistant to chemical exposure, making them ideal for industrial piping and plumbing applications.
5. Compensating for Misalignment: Rubber and plastic connectors offer flexibility to compensate for slight misalignments between components. This is particularly useful in systems where precise alignment is challenging, or where some degree of movement is expected.
6. Lightweight and Cost-Effective: Compared to metal connectors, rubber and plastic connectors are often lighter and less expensive. This makes them an ideal choice for applications where weight is a concern, such as in automotive or lightweight duct systems.

Applications

• HVAC Systems: Rubber and plastic connectors are used to connect flexible ducts, dampen vibrations, and maintain airtight connections between equipment.
• Plumbing and Piping: Commonly used in low-pressure water systems, they provide a flexible, watertight connection between pipes and fixtures.
• Automotive Industry: Used in vehicles to connect hoses and ducts, where they must withstand vibrations, high temperatures, and exposure to oils and chemicals.
• Industrial and Chemical Systems: Plastic connectors are often used to handle corrosive chemicals or fluids due to their chemical resistance.

Rubber and plastic connectors are essential components for providing flexible, airtight, and vibration-absorbing connections in various systems. They help absorb movement, reduce noise, prevent leaks, and compensate for misalignment, while offering excellent resistance to temperature changes and chemical exposure. These connectors are widely used in industries such as HVAC, plumbing, automotive, and industrial piping, thanks to their versatility, durability, and cost-effectiveness.

Understanding the key material properties for duct connectors is crucial for selecting the right type for your HVAC system. Here are the essential properties to consider:

Flexibility

Flexibility is vital to accommodate slight misalignments and movements within the HVAC system, reducing stress on the ductwork and preventing tear or damage under normal thermal expansion and contraction.

Durability

Durability ensures that the connectors last as long as the ductwork without needing frequent replacements. This reduces maintenance costs and ensures continuous system integrity.

Resistance to Environmental Factors

• Heat Resistance: Connectors must withstand the temperatures they are exposed to, especially in high-temperature applications like furnace ductwork or industrial processes.
• Chemical Resistance: In environments where chemicals are present, such as in industrial applications or laboratories, connectors need to resist corrosion or degradation.
• Moisture Resistance: For systems exposed to humidity or direct moisture, such as in basements or kitchens, moisture resistance is essential to prevent mold growth and material breakdown.

Comparison of Material Options

When selecting the material for duct connectors, considering the environment and specific application needs is crucial. Here’s a comparison of common materials:

Where are They Used?

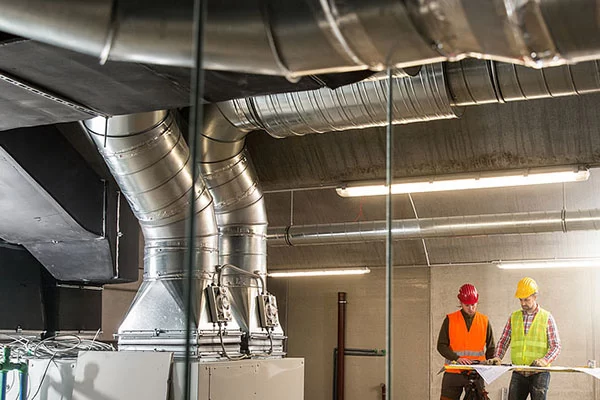

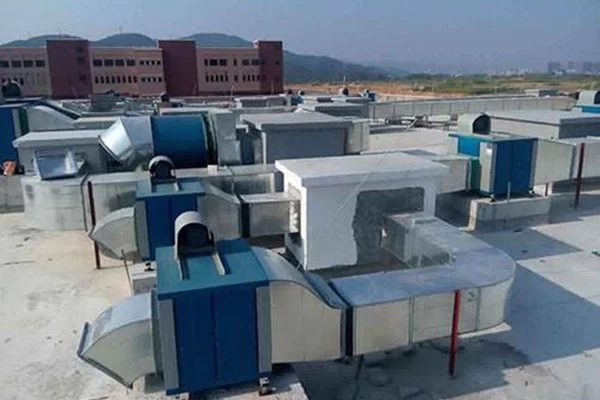

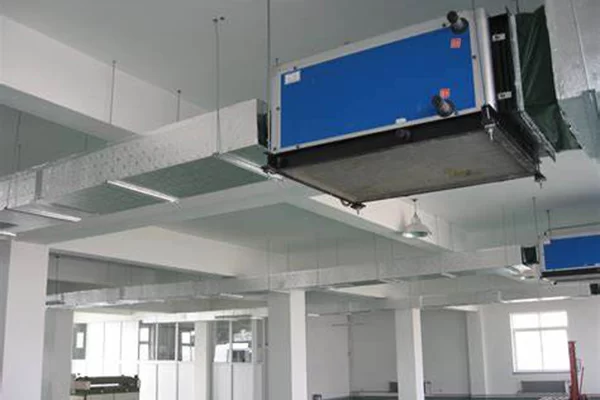

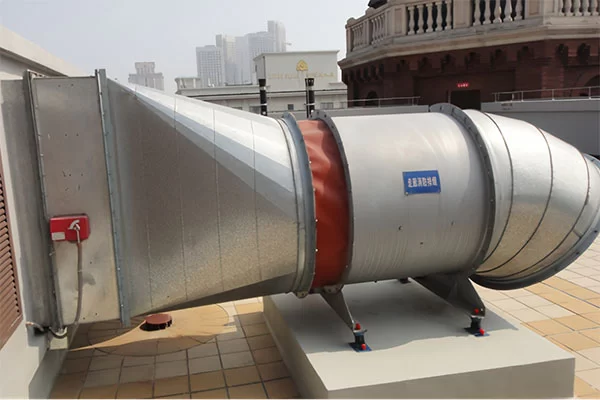

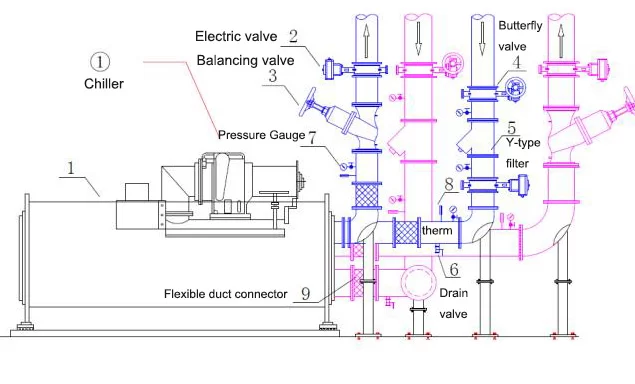

Flexible air duct connectors are versatile components used in various settings within HVAC systems to enhance functionality and performance. Their primary function is to provide a flexible join between rigid components, helping to absorb vibration, reduce noise, and accommodate thermal expansion and misalignment. Here are some key applications of flexible air duct connectors:

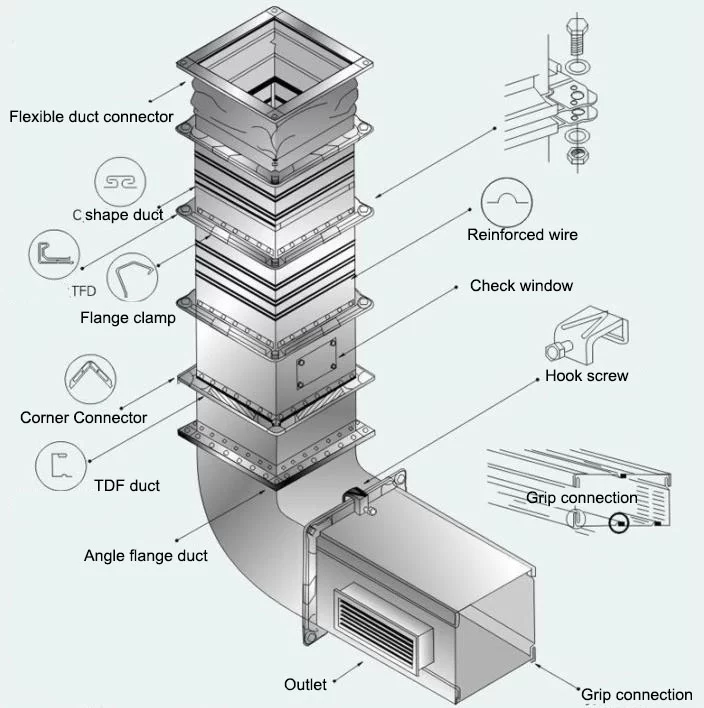

Proper installation of flexible duct connectors is crucial for the optimal performance of HVAC systems. Incorrect installation can lead to reduced system efficiency, increased noise, and even system failure. Here are step-by-step guidelines to ensure that flexible duct connectors are installed correctly:

Preparing for Installation

1. Gather Tools and Materials: Before starting, make sure you have all necessary tools and materials. Commonly needed items include:

• Duct connector itself
• Sheet metal screws
• Duct tape or a specialized duct sealant
• Metal snips
• Screwdriver or drill
• Measuring tape

2. Measure the Ductwork: Accurately measure the ductwork where the connector will be installed. This ensures the connector fits perfectly, avoiding unnecessary strain or gaps.

3. Check Compatibility: Ensure the connector material is suitable for the temperature and chemical conditions of the ductwork environment.

Step-by-Step Installation Process

1. Prepare the Duct Ends: Clean and smooth the edges of the ducts where the connector will attach. Any sharp or uneven edges can damage the connector.
2. Attach the Metal Flanges: Most flexible duct connectors come with metal flanges that need to be securely attached to the ductwork. Fasten these with sheet metal screws, spacing them evenly around the perimeter.
3. Install the Flexible Section: Attach the flexible part of the connector to the flanges. Ensure it is not twisted or kinked, as this can restrict airflow and cause the system to operate inefficiently.
4. Secure with Fasteners: Use screws or clamps to secure the flexible section to the flanges. Ensure a tight fit to prevent air leaks but avoid over-tightening, which can tear the material.
5. Seal the Connections: Use duct tape or a specialized duct sealant to seal the joints between the ductwork and the metal flanges. This step is crucial to prevent air leaks which can significantly impact system efficiency.
6. Inspect for Proper Alignment: Make sure the ductwork is properly aligned and that there are no stress points on the connector. Misalignment can lead to early wear and tear.

Post-Installation Checks

1. Test for Leaks: Once the installation is complete, test the system at normal operating pressures to ensure there are no air leaks. Use smoke pencils or a similar device to detect leaks.
2. Check for Noise: Run the system and listen for any unusual noises. Excessive rattling or whistling sounds can indicate loose connections or other issues.
3. Perform a Visual Inspection: Ensure that the connector is not compressed or stretched too much, as this can affect its performance. It should be installed neutrally, without tension or compression.

Tips to Avoid Common Mistakes

• Do Not Overstretch: Flexible connectors should not be used to make up for significant gaps between ductwork. They are designed to provide flexibility, not length.
• Avoid Sharp Bends: Ensure that the installation does not create sharp bends in the connector, as this can restrict airflow and reduce efficiency.
• Regular Maintenance: Check connectors during regular HVAC maintenance. Look for signs of wear, corrosion on metal parts, and ensure all seals remain air-tight.

By following these detailed installation guidelines, you can ensure that your flexible duct connectors are installed correctly, providing optimal performance and longevity for your HVAC system.

Maintaining flexible air duct connectors is crucial for ensuring the long-term efficiency and reliability of HVAC systems. Regular maintenance helps prevent system failures, optimizes energy use, and extends the lifespan of both the ductwork and the HVAC equipment. Here’s a comprehensive guide to maintaining flexible air duct connectors:

Cleaning Procedures

1. Dust and Debris Removal:

• Tools Needed: Use a soft brush or a vacuum with a brush attachment.
• Procedure: Gently remove any dust, lint, or debris that has accumulated on the surface of the duct connectors. This prevents blockages and maintains air quality and efficiency.

2. Mold and Mildew Cleaning:

• When Needed: If you notice signs of mold or mildew, which can occur in humid environments.
• Cleaning Solution: Use a mild detergent mixed with water, or a solution recommended by the connector manufacturer that is safe for the material.
• Application: Apply the solution with a cloth or sponge, gently cleaning the affected area without saturating the material.

Preventive Measures

1. Ensure Proper Installation:

• Proper installation is key to reducing the need for frequent maintenance. Ensure that flexible duct connectors are installed correctly, without undue stress or stretching.

2. Check for Secure Fittings:

• Regularly check that all fittings and clamps are tight and secure. Loose fittings can lead to inefficiencies and increased wear on the connectors.

3. Avoid Excessive Heat Exposure:

• Ensure that duct connectors are not exposed to temperatures higher than what they are rated for. Excessive heat can accelerate material degradation.

Long-Term Care Tips

• Replacement Planning: Even with the best maintenance, flexible duct connectors will eventually need replacement. Plan for this by keeping records of installation dates and any maintenance issues, and inspect older parts more frequently as they near the end of their expected lifespan.
• Upgrade Options: Consider upgrading to higher-quality or more suitable materials as replacements for better performance and longer life, especially if the system requirements have changed or if there have been issues with the current materials.

By adhering to these maintenance guidelines, you can ensure that flexible air duct connectors continue to function effectively, supporting the overall health and efficiency of your HVAC system. Regular maintenance not only helps in prolonging the life of the connectors but also contributes to maintaining a comfortable and safe environment indoors.
